POWER FOR PROFESSIONALS
AS29MB
VACUUM AS29MB WITH AUXILIARY ENGINE

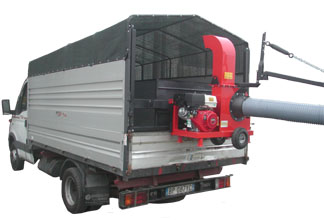

ASP29MB vacuum with auxiliary engine mounted on a self-supporting frame equipped with wheels, for small displacements with hooks for attachment to the tailboard of trucks.
|
TECHNICAL DATA |
AS29MB |
|
Auxiliary Engine |
HONDA GX390 13 HP |
|
Impeller rpm |
3.600 |
|
Impeller blades N° |
7 |
|
Maximum length pipe mt. |
8-10 |
|
Suction pipe as standard/on request mm |
ø 150 / 200 |
|
Pipe aspired air m³/min |
63 |
|
Air expelled max speed mt/min |
2500 |
|
Oil tank lt. |
6,5 |
|
Size cm |
110*60*133 |
|
Weight Kg. |
130 |
ACCESSORIES ON REQUEST:
 |

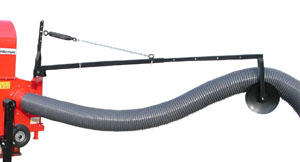

K 16 Support kit for suction pipe diam. 150 or 200. In the collection phase it makes less burdensome and more practical the work of the operator who must not shift the weight of the whole pipe; the kit makes sure that the tube does not touch the ground allowing a better maneuverability of the suction inlet for easier material collection. |
